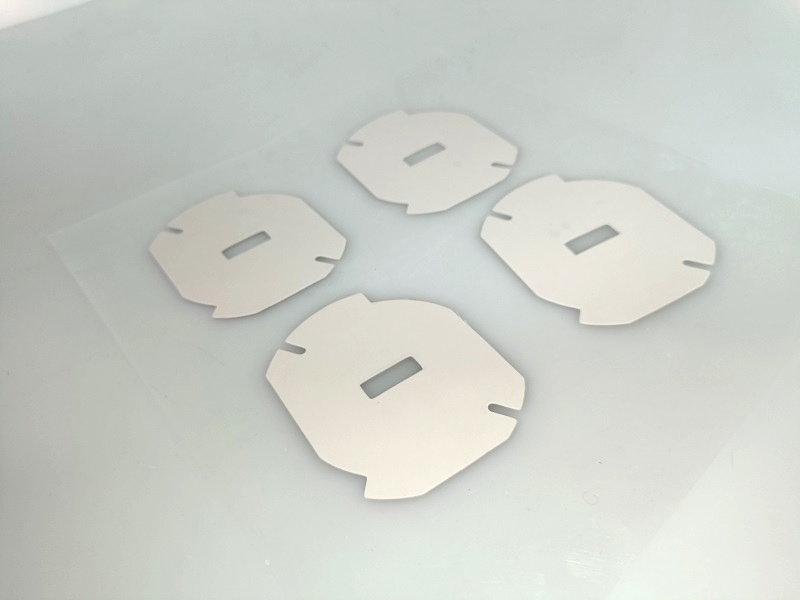

SP Silicone (pad) miscellaneous parts

Thermal Conductive Pad/Cooling Soft Gap Pad
◇ Excellent electrical insulation
◇ Excellent heat, ozone and chemical resistance
◇ High and low temperature impact resistance, fast vulcanization, very low odor
Send Request Now

The SP silica gel pad can be used for a long time at the temperature ranging from 65 deg C below zero to 200 deg C and keeps soft and elastic performance, and has the characteristics of excellent electrical performance and chemical stability, water resistance, ozone resistance, weather aging resistance, no corrosion, physiological inertia, no toxicity or odor, low linear shrinkage, easy operation and the like.

Table of technical parameters

Test item

Unit

Numerical value

Test standard

Color

-----

Milky white/black

Visual

Thickness

mm

0.3-10

ASTM D374

Density

g/cc

1.3-1.5

ASTM D792

Hardness

Shore A

50-70

ASTM D2240

Tear strength

KN/m

2.3

ASTM D412

Elongation

%

60

ASTM D412

Breakdown voltage

Kv/m

≥8.0

ASTM D149

Volume resistivity

Ω·m

1.7×1013

ASTM D257

Temperature resistance range

℃

-40~220

EN344

Weight loss

%

≤1

@200℃ 200H

Fire performance

------

V-0

UL 94


Choose Dobon Thermal Pad Materials
Configurations Available
Avalable Options
1-side / 2-side adhesive lamination
Standard Sheet and Roll Sizes
Sheet size:200 x 400mm, 350x350mm
individual parts available Roll Form available(300mm width)
How to guarantee the quality of Thermal Pad?

1

High-temperature Aging Test:The specimens are in the setting ofenvironmental chamber temperature at 150℃,1000h high temperature

2

Temperature cyclerange of -45℃ to 150℃; Heating rate of 2℃/min, cooling rate of 1℃/min; Remain 30 min at high and low temperature points

3

Test Cycles not lessthan 8 times and the cycle time of 48h.

4

environmental chamber temperature at 85℃ and Humidityat 85% RH after 440 hours high temperature and humidity test the thermal conductivity.

5

High-temperature Aging Test;High Temperature and Humidity Test;High and Low Temperature Cycling Test

6

invested in advanced QA Test equipment to maintain accuracy and completeness of measurement.Coordinate Measuring Machine, X-ray detection machine

Typical Applications Include
✓ LED lighting ✓ Backlight module ✓ Switching power supply ✓ Medical equipment ✓ Communication equipment
✓ LED TV ✓ Mobile device ✓ Video equipment ✓ Network products ✓ Household appliances
✓ PC Server/Workstation ✓ Optical drive/COMBO ✓ Base station
Why Dobon Thermal Pad？
1 China factory Directly, no middleman, with more than 200 employees
2 Sophisticated production equipment such as placement machine, high-temperature furnace, AOI, SPI, X-Ray, etc.
3 Intelligent quality control system, strict quality control
4 One-stop service, single manufacturing team, 100% privacy
We are a manufacturer with 15 years of experience in Thermal Interface Materials, which guarantees that you will get the best quotation and the best quality products.

Click the message box on the right to contact us now to get your custom Thermal pad materials quotation.
What do we need in order to give you a quick quote?
Materials Type
Thermal pad, Thermal Grease, Thermal Insulator,Thermal Tape, Thermal conductive gel,Thermal Graphite Sheets,Thermal clay,Thermal Putty etc.
Materials Size
Length, Width, Thickness, Hardness, Color, Thermal Conductivity, Quantity etc
Certification

Has passed ISO: 9001 quality certification to ensure that our products meet industry standards,
At Dobon, insists on excelsior quality policy, has established environmental assessment lab, analysis gauging lab, reliability testing lab,safety codex lab,all these meet SGS,CTI testing level, with infrared spectrum, thermal conductivity measuring instrument,DSC,DTG to make quantitative component analysis, as the adequate technical support in manufacture.

Dobon focuses on providing full range Of Thermal Interface Materials for small and medium-sized enterprises.
