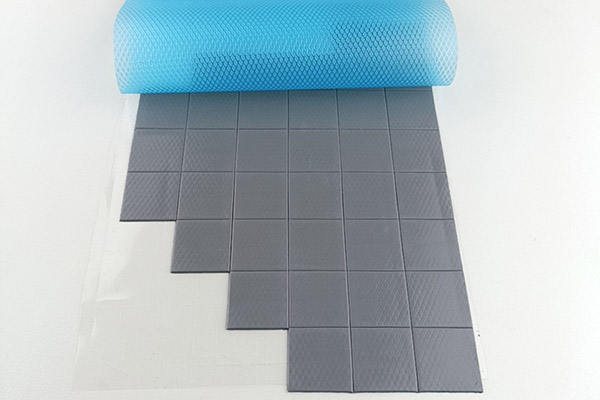

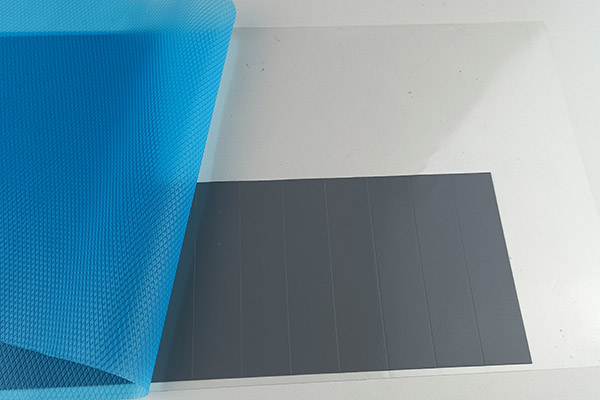

CP600 6W Thermal Conductive Pad

Thermal Conductive Pad/Cooling Soft Gap Pad
◇6.00 W/mk thermal conductivity
◇ Low Hardness
◇Cost-effective which is made through advanced manufacturing process
◇ Electrically insulating
◇Absorbable impact stress, protecting fragile devices
◇Electrical insulation
Send Request Now

Table of technical parameters

Test item

Unit

CP100

CP200

CP300

CP400

CP500

CP600

CP700

CP800

CP900

CP1000

CP1200

CP1500

Color


Light gray

Light blue

Blue/dark grey

Green

Dark gray

Dark gray

Dark gray

Dark gray

Dark gray

Dark gray

Dark gray

Dark gray

Thickness

Mm

0.15~18

0.15~18

0.3~8

0.3-5

0.5-5

0.5-5

0.5~5

0.5~5

0.5~5

0.5~5

0.8~5

0.8~5

Specific gravity

g/cm3

1.8±0.1

2.4±0.1

2.9±0.1

3.2±0.1

3.3±0.1

3.4±0.1

3.4±0.5

3.5±0.1

3.6±0.1

3.7±0.1

3.8±0.1

3.9±0.1

Hardness

Shore C

20±5

25±5

30±5

30±5

35±5

35±5

35±5

35±5

35±5

35±5

35±5

35±5

Compression rate

%

40

30

25

25

25

25

25

25

25

20

20

20

Temperature resistance range

-40~150

-40~150

Volume resistance

Ω·m

1.2*1011

1.0*1011

1.0*1011

1.0*1011

1.0*1011

1.0*1011

1.0*1011

1.0*1011

1.0*1011

1.0*1011

1.0*1011

1.0*1011

Withstand voltage

KV/mm

5

5

5

5

5

5

6

6

6

6

6

6

Flame retardant rating


V-0

V-0

Thermal conductivity

w/m-k

1

2

3

4

5

6

7

8

9

10

12

15



How to guarantee the quality of Thermal Pad?

1

Professional engineers will review the order, conduct process evaluation and program production.

2

Thermally conductive silicone sheets have excellent high thermal conductivity and ease of use.

3

providing unparalleled thermal conductivity in interface gap filling materials

4

Provide effective solutions for different applications

5

Fixture production and functional testing

6

Fastest delivery time of 3-5 days

Typical Applications Include
Bonding bus bars in a variety of electronic modules and sub-assemblies
Attaching a metal-based component to a heat sink
Bonding a heat sink to a variety of ASIC, graphic chip and CPU packages
Bonding flexible circuits to a rigid heat spreader or thermal plane
Assembly tapes for BGA heat spreader
Attaching PCB assemblies to housings
Why Dobon Thermal Pad?
1 China factory Directly, no middleman, with more than 200 employees
2 Sophisticated production equipment such as placement machine, high-temperature furnace, AOI, SPI, X-Ray, etc.
3 Intelligent quality control system, strict quality control
4 One-stop service, single manufacturing team, 100% privacy
We are a manufacturer with 15 years of experience in Thermal Interface Materials, which guarantees that you will get the best quotation and the best quality products.

Click the message box on the right to contact us now to get your custom Thermal pad materials quotation.
What do we need in order to give you a quick quote?
Materials Type
Thermal pad, Thermal Grease, Thermal Insulator,Thermal Tape, Thermal conductive gel,Thermal Graphite Sheets,Thermal clay,Thermal Putty etc.
Materials Size
Length, Width, Thickness, Hardness, Color, Thermal Conductivity, Quantity etc
Certification

Has passed ISO: 9001 quality certification to ensure that our products meet industry standards,
At Dobon, insists on excelsior quality policy, has established environmental assessment lab, analysis gauging lab, reliability testing lab,safety codex lab,all these meet SGS,CTI testing level, with infrared spectrum, thermal conductivity measuring instrument,DSC,DTG to make quantitative component analysis, as the adequate technical support in manufacture.

Dobon focuses on providing full range Of Thermal Interface Materials for small and medium-sized enterprises.
For more detailed thermal pad knowledge and other thermal transfer materials related knowledge, please click here

To make the industry more efficient, come to Dobon for free sample test.

Dobon firmly believes that quality is the soul of products, and strictly abides by every standard, every process of production, and every detail of service!
