Table of technical parameters
Test item | Unit | CP100 | CP200 | CP300 | CP400 | CP500 | CP600 | CP700 | CP800 | CP900 | CP1000 | CP1200 | CP1500 |
Color | Light gray | Light blue | Blue/dark grey | Green | Dark gray | Dark gray | Dark gray | Dark gray | Dark gray | Dark gray | Dark gray | Dark gray | |
Thickness | Mm | 0.15~18 | 0.15~18 | 0.3~8 | 0.3-5 | 0.5-5 | 0.5-5 | 0.5~5 | 0.5~5 | 0.5~5 | 0.5~5 | 0.8~5 | 0.8~5 |
Specific gravity | g/cm3 | 1.8±0.1 | 2.4±0.1 | 2.9±0.1 | 3.2±0.1 | 3.3±0.1 | 3.4±0.1 | 3.4±0.5 | 3.5±0.1 | 3.6±0.1 | 3.7±0.1 | 3.8±0.1 | 3.9±0.1 |
Hardness | Shore C | 20±5 | 25±5 | 30±5 | 30±5 | 35±5 | 35±5 | 35±5 | 35±5 | 35±5 | 35±5 | 35±5 | 35±5 |
Compression rate | % | 40 | 30 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 20 | 20 | 20 |
Temperature resistance range | ℃ | -40~150 | -40~150 | ||||||||||
Volume resistance | Ω·m | 1.2*1011 | 1.0*1011 | 1.0*1011 | 1.0*1011 | 1.0*1011 | 1.0*1011 | 1.0*1011 | 1.0*1011 | 1.0*1011 | 1.0*1011 | 1.0*1011 | 1.0*1011 |
Withstand voltage | KV/mm | 5 | 5 | 5 | 5 | 5 | 5 | 6 | 6 | 6 | 6 | 6 | 6 |
Flame retardant rating | V-0 | V-0 | |||||||||||
Thermal conductivity | w/m-k | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 15 |
1
Professional engineers will review the order, conduct process evaluation and program production.
2

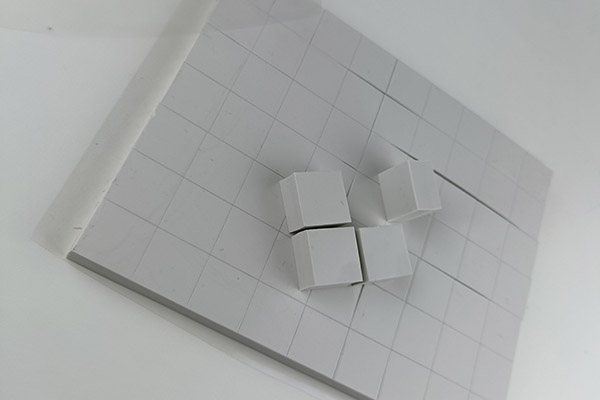

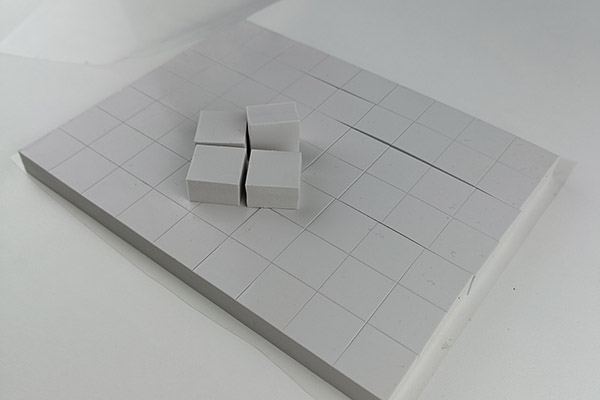

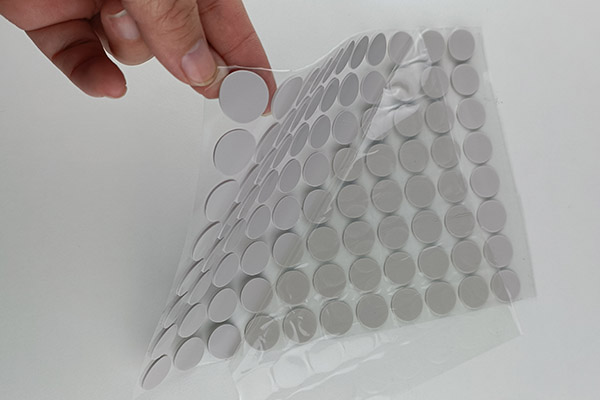

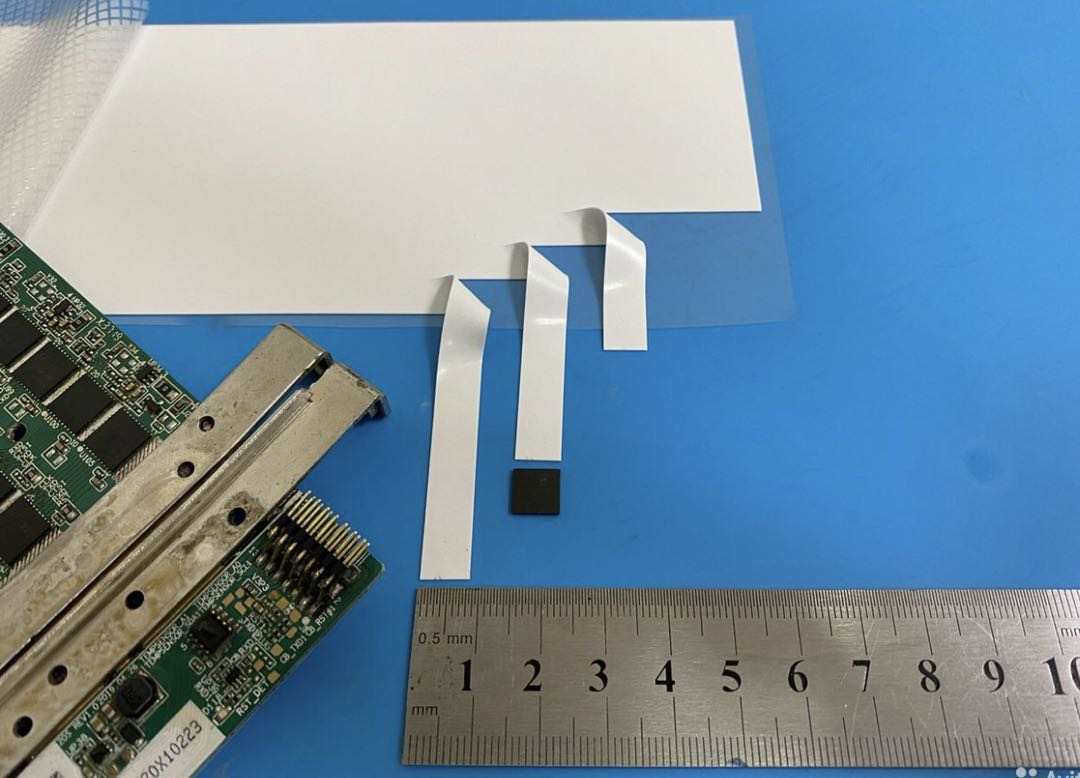

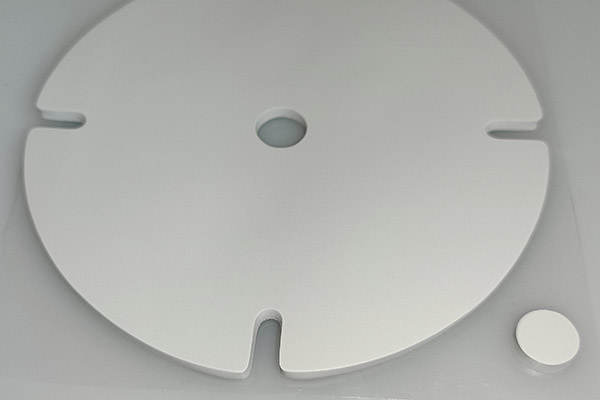

Thermally conductive silicone sheets have excellent high thermal conductivity and ease of use.
3
providing unparalleled thermal conductivity in interface gap filling materials
4

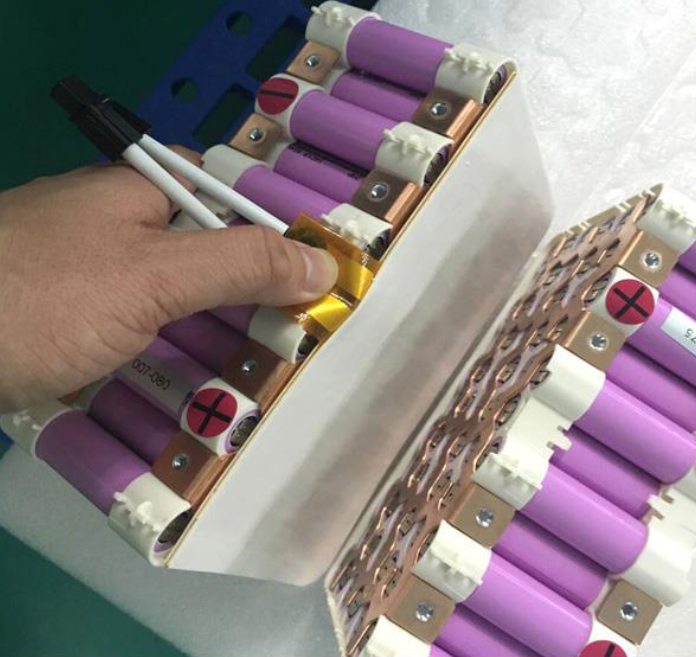

Provide effective solutions for different applications
5
Fixture production and functional testing
6
Fastest delivery time of 3-5 days
Has passed ISO: 9001 quality certification to ensure that our products meet industry standards,
At Dobon, insists on excelsior quality policy, has established environmental assessment lab, analysis gauging lab, reliability testing lab,safety codex lab,all these meet SGS,CTI testing level, with infrared spectrum, thermal conductivity measuring instrument,DSC,DTG to make quantitative component analysis, as the adequate technical support in manufacture.
Dobon focuses on providing full range Of Thermal Interface Materials for small and medium-sized enterprises.
For more detailed thermal pad knowledge and other thermal transfer materials related knowledge, please click here
Dobon firmly believes that quality is the soul of products, and strictly abides by every standard, every process of production, and every detail of service!
